Enterprise Reference Architecture on Azure

CloudThinker Enterprise can run single-tenant in Azure subscriptions your organization owns, reachable only from your private network. This page shows the reference design that security and platform teams review before a self-hosted deployment.

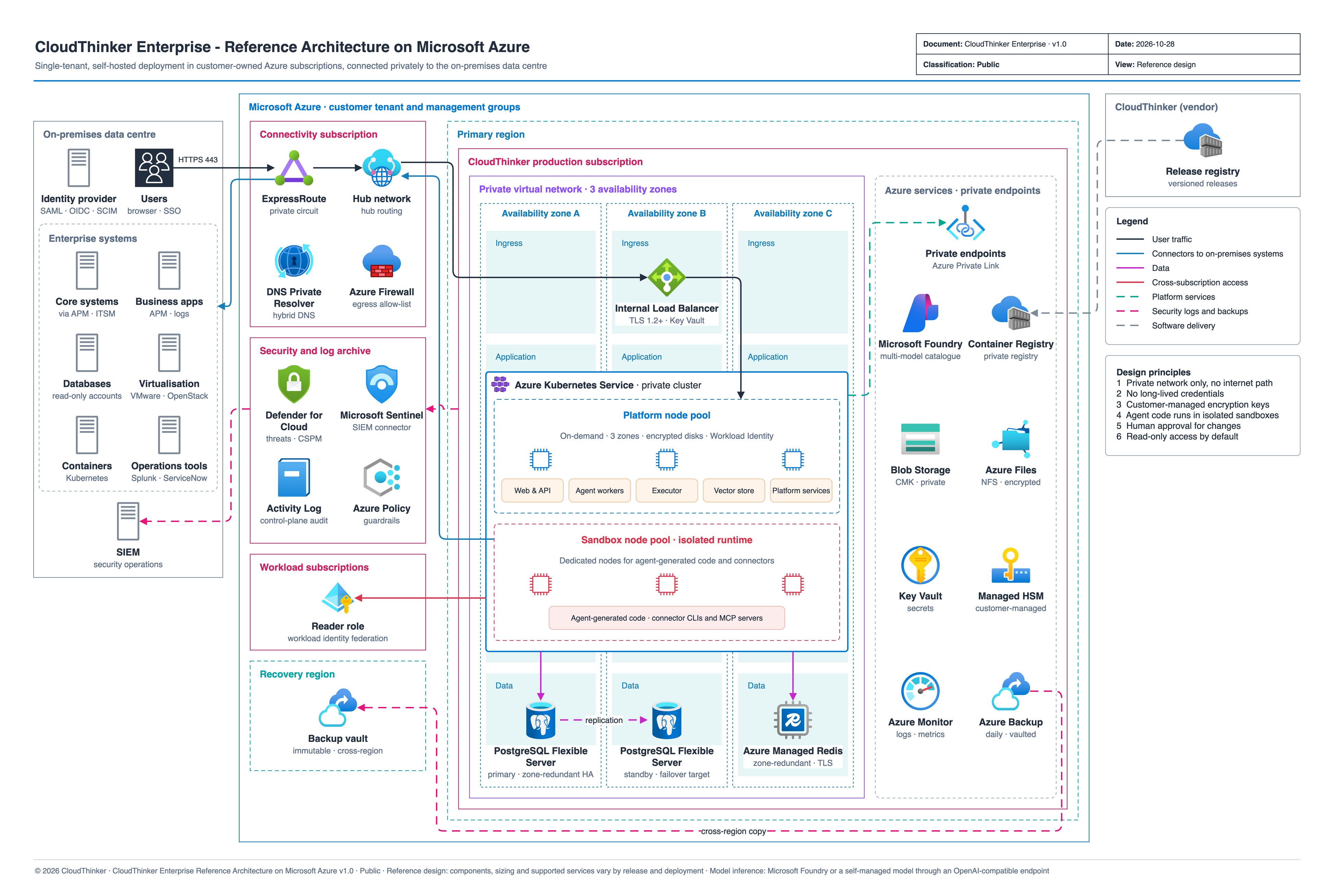

CloudThinker Enterprise in a customer Azure tenant: a private virtual network across three availability zones with AKS platform and sandbox node pools, PostgreSQL Flexible Server, Azure Managed Redis, and Azure services reached through private endpoints, connected to the on-premises data centre over ExpressRoute. — CloudThinker Enterprise reference architecture on Microsoft Azure

Reference design. Self-hosted deployments are in early access. Components, sizing, and supported services are confirmed during onboarding and can vary by release. See Deployment options.

Layers

Layer	Microsoft Azure services	What it does
Connectivity	Azure ExpressRoute or VPN Gateway, a hub network, Azure DNS Private Resolver	Users and connections reach the deployment over your private network. There’s no internet ingress.
Ingress	Internal Azure Load Balancer, certificates in Azure Key Vault	Serves the web console and API over TLS 1.2 or later.
Compute	Azure Kubernetes Service as a private cluster, two node pools across three availability zones	The platform node pool runs the web console, API, agent workers, and vector store. The sandbox node pool runs agent-generated code and connection commands.
Data	Azure Database for PostgreSQL Flexible Server, Azure Managed Redis, Azure Blob Storage, Azure Files	Holds conversations, findings, the task queue, documents, and shared files, encrypted with keys you manage.
AI models	Microsoft Foundry, or a model you host behind an OpenAI-compatible endpoint	Model calls stay in the subscription and region you choose. The model is confirmed during onboarding.
Azure APIs	Private endpoints (Azure Private Link) for Container Registry, Key Vault, Storage, and Azure Monitor	Workloads call Azure without leaving the private network.
Security and audit	Microsoft Defender for Cloud, Microsoft Sentinel, Activity Log, Azure Policy	Your security subscription keeps full visibility, and logs flow to your SIEM.
Recovery	Azure Backup with an immutable vault in a recovery region	Daily backups are copied to a second region.

How a request flows

A user opens the web console over ExpressRoute or VPN. The hub network routes the request to the internal load balancer.
The API checks the user’s role and queues the task for an agent worker.
CloudThinker plans each step with the model you configured. Reads run, and every write goes through Approvals, which can wait for a person or refuse it.
Commands run in a sandbox on the sandbox node pool. Connections reach on-premises systems through the hub network, and other subscriptions through a read-only role assigned to CloudThinker’s workload identity.
Data, secrets, and logs stay in your environment. Backups are copied to the recovery region.

Design principles

Principle	How the design applies it
Private network only	No public IP address or public load balancer.
No long-lived credentials	Each workload uses its own managed identity through Microsoft Entra Workload ID. Other subscriptions are reached through role assignments you create and can revoke.
Keys you manage	Keys in Azure Key Vault or Managed HSM encrypt the database, cache, storage, and logs.
Isolated agent code	Agent-generated code runs only in sandboxes, on nodes kept apart from the platform.
Approval for changes	Writes pass Approvals before they run. A read-only credential can’t write at all.
Read-only by default	Connected systems get least-privilege read access. Add change access only where you approve it.

What you provide

A Microsoft Entra tenant with management groups and separate connectivity, security, and workload subscriptions.
Azure ExpressRoute or a site-to-site VPN from your data centre.
An identity provider that supports SAML 2.0 or OIDC. See Single sign-on.
Access to approved models in Microsoft Foundry, or a model endpoint you host.

To start a self-hosted deployment, follow Request a private deployment.
